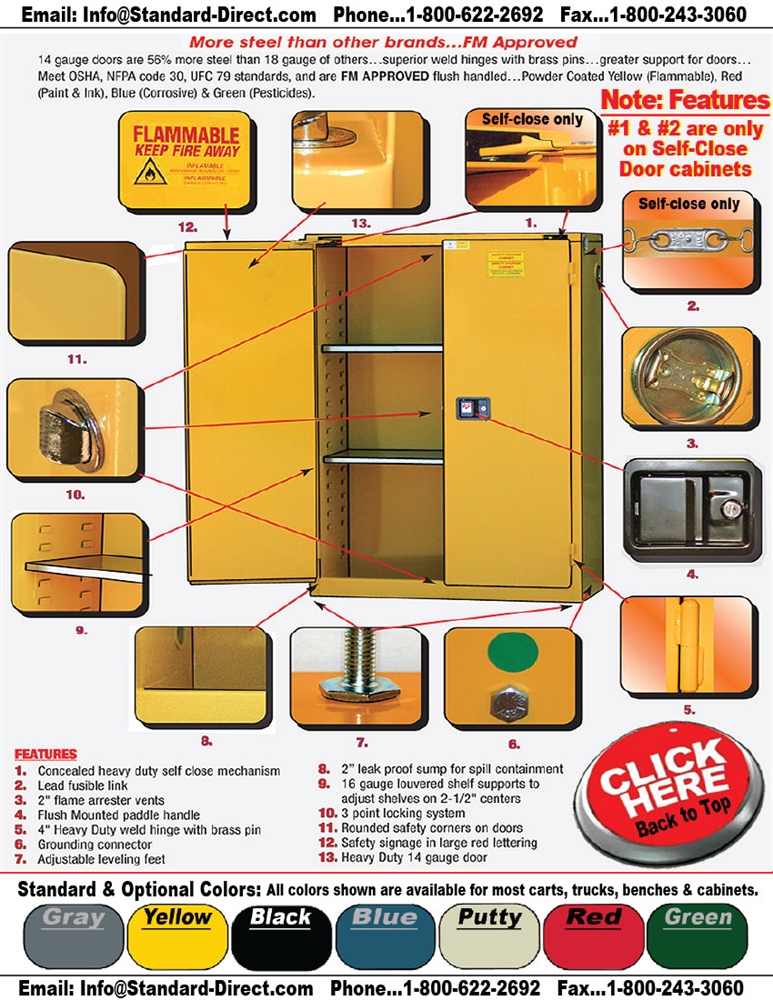

FLAMMABLE LIQUID SAFETY CABINETS 99BH
|
|
Model 99BH - SELF CLOSE "BI-FOLD" DOORS on double wall cabinets to contain flammable
liquids in protected storage. Product Features: Self close doors (shut, index, and latch automatically as fusible link melts under fire conditions at 165°). Paint & Ink cabinets, all sizes are FM
Approved! All welded double wall 18 gauge construction with 1-1/2"
insulating air space. Doors are double walled, 14 gauge outside & 18
gauge inside. 2" leak-proof sill to contain leaks. Lockable
flush mounted handle (gripper pad) with 2 keys. Doors have 3 point
locking system and radius edges. 4" heavy duty welded hinges with brass pins.
Twin 2" flame arrester vents. Adjustable leveling feet and grounding
connector. Powder coated yellow finish. Safety signage in large red
letters. Galvanized steel shelves adjust on 2-1/2" centers. Meets OSHA,
and NFPA code 30 standards. - Class I & II - 60 gallons, Class
III - 120 gallons: -...2192, 2255
|
|
|
|
|
|
|
|
MEDICAL GAS CYLINDER CABINETS 99CB
|
|
Model 99CB - MEDICAL GAS CYLINDER CABINETS . Product Features: All welded double wall 18 gauge construction with 1-1/2" insulating air space.
Non-sparking aluminum divider.
Lockable flush mounted handle with 2 keys.
Door has 3 point locking system and radius edges. Door is double walled, 14 gauge outside & 18 gauge inside.
4" heavy duty welded hinges with brass pins.
Adjustable leveling feet.
Safety signage says "Medical Gas Cylinders".
Grounding connector.
Meets OSHA, and NFPA code 30 & 101 standards.
Manual close door.
Powder coated green finish....2192, 2258, 1891, 1885
|
|
|
|
|
|
|
|
GAS CYLINDER SAFETY CABINETS 99CH
|
|
Model 99CH - HORIZONTAL PROPANE CYLINDER safety cabinets. cylinder storage cabinet consists of expanded
metal body, angle iron framing and all-welded construction for maximum
strength and rigidity to protect your cylinders from unauthorized
handling. Lockable mesh door(s) with slide bolt hasp, lock not included.
All welded, ready to use, meets OSHA 1910.
13 gauge flattened mesh sides. 14 gauge solid top. 1 1/2" x 3/16" thick corner angles.
Foot pads with pre-drilled holes.
Powder coated safety yellow.
Safety signage in large red letters.
Smooth 1" tube support rails for cylinder protection....1885, 1886
|
|
|
|
|
|
|
|
GAS CYLINDER SAFETY CABINETS 99CV
|
|
Model 99CV - VERTICAL WELDING GAS CYLINDER safety cabinets. cylinder storage cabinet consists of expanded
metal body, angle iron framing and all-welded construction for maximum
strength and rigidity to protect your WELDING GAS cylinders from unauthorized
handling. Lockable mesh door(s) with slide bolt hasp, lock not included.
All welded, ready to use, meets OSHA 1910.
13 gauge flattened mesh sides. 14 gauge solid top. 1 1/2" x 3/16" thick corner angles.
Foot pads with pre-drilled holes.
Powder coated safety yellow.
Safety signage in large red letters.
Smooth 1" tube support rails for cylinder protection....1885, 1887
|
|
|
|
|
|
|
|
GAS CYLINDER SAFETY CABINETS 99CX
|
|
Model 99CX - COMBINATION VERTICAL WELDING GAS CYLINDER & HORIZONTAL PROPANE safety cabinet. cylinder storage cabinet consists of expanded
metal body, angle iron framing and all-welded construction for maximum
strength and rigidity to protect your WELDING GAS & PROPANE GAS cylinders from unauthorized
handling. Lockable mesh door(s) with slide bolt hasp, lock not included.
All welded, ready to use, meets OSHA 1910.
13 gauge flattened mesh sides. 14 gauge solid top. 1 1/2" x 3/16" thick corner angles.
Foot pads with pre-drilled holes.
Powder coated safety yellow.
Safety signage in large red letters.
Smooth 1" tube support rails for cylinder protection....1885, 1888
|
|
|
|
|
|
|
|
GAS CYLINDER SAFETY CABINETS 99CU
|
|
Model 99CU - COMBINATION VERTICAL WELDING GAS CYLINDER & VERTICAL PROPANE cylinder safety cabinet. The left side of the cabinet holds up to 12 cylinders in the vertical
position (20-43 lb). The right side of the cabinet holds up to 10
cylinders (up to 200 lb) in vertical position. Cylinders on the right
side can be secured with adjustable safety retention chains. Cylinder storage cabinet consists of expanded
metal body, angle iron framing and all-welded construction for maximum
strength and rigidity to protect your WELDING GAS & PROPANE GAS cylinders from unauthorized
handling. Lockable mesh door(s) with slide bolt hasp, lock not included.
All welded, ready to use, meets OSHA 1910.
13 gauge flattened mesh sides. 14 gauge solid top. 1 1/2" x 3/16" thick corner angles.
Foot pads with pre-drilled holes.
Powder coated safety yellow.
Safety signage in large red letters.
Smooth 1" tube support rails for cylinder protection....1885, 1889
|
|
|
|
|
|
|
|
GAS CYLINDER SAFETY CABINETS 99CA
|
|
99CA - VERTICAL FORK-TRUCK GAS CYLINDER safety storage cabinet. This cabinet holds cylinders in the vertical
position (20-43 lb). Cylinder storage cabinet consists of expanded
metal body, angle iron framing and all-welded construction for maximum
strength and rigidity to protect your PROPANE GAS cylinders from unauthorized
handling. Lockable mesh door(s) with slide bolt hasp, lock not included.
All welded, ready to use, meets OSHA 1910.
13 gauge flattened mesh sides. 14 gauge solid top. 1 1/2" x 3/16" thick corner angles.
Foot pads with pre-drilled holes.
Powder coated safety yellow.
Safety signage in large red letters.
Smooth 1" tube support rails for cylinder protection.....1885, 1890
|
|
|
