Home > BAR CRADLE TRUCKS & RACKS
Bar Cradle Trucks - 4,000 and 10,000 lbs. capacity. Designed for more efficient handling of pipe, tubing and bar stock.
(10) BAR CRADLE TRUCKS 99TC (15) BAR CRADLE TRUCKS 99CR (20) BAR CRADLE TRUCKS 99CT
(25) BAR & PIPE TRUCKS 99TP (30) BAR & PIPE TRUCKS 99UP
Sort By:
Page of 1
BAR CRADLE TRUCKS 99TC
BAR CRADLE TRUCKS 99TC

Model 99TC - Bar cradle trucks, used in pairs to accommodate any length of bar, pipe, or flat material. Capacity - 4,000 Lbs. evenly distributed. Product Features: All welded construction (except casters). 1-1/2" x 3/16" thick angle frame construction with 12 gauge caster mounts. Cradle 22"w x 14"h. Bed height - 20". Overall height - 34". 6" x 2" Phenolic swivel casters (bolted on for ease of replacement). Powder coated gray finish. (1940,1941)


BAR CRADLE TRUCKS 99CR
BAR CRADLE TRUCKS 99CR

Model 99CR - Super heavy duty bar cradle trucks. Capacity - 5,000 Lb. evenly distributed loads. Product Features: All welded construction (except casters). 3-CRADLES on the 62" long truck & 4-CRADLES on the 96" long truck at 27" w x 14" high. 3" x 3/16" thick flat load supports. 3" channel steel frame. Overall height - 28". 6" x 2" Phenolic swivel casters on the four corners and 10" phenolic wheels on 1" axels in the center allow for easy maneuverability. Casters are bolted on for ease of replacement. Powder coated gray finish.on for ease of replacement....1940, 1942


BAR CRADLE TRUCKS 99CT
BAR CRADLE TRUCKS 99CT

Model 99CT - Super heavy duty bar cradle trucks. Capacity - 10,000 Lb. evenly distributed loads. Product Features: All welded construction (except casters). 3-CRADLES on the 62" long truck & 4-CRADLES on the 96" long truck at 27" w x 14" high. 3" x 3/16" thick flat load supports. 4" channel steel frame. Overall height - 30". 8" x 2" Phenolic swivel casters on the four corners and 12" phenolic wheels on 1" axels in the center allow for easy maneuverability. Casters are bolted on for ease of replacement. Powder coated gray finish....1940, 1943

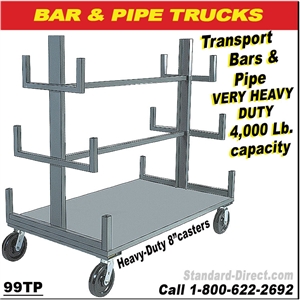

BAR CRADLE TRUCKS 99TP
BAR CRADLE TRUCKS 99TP

Model 99TP - Transports pipes and bars. Capacity - 4,000 lb., evenly distributed. Product Features: All welded construction, except casters. Durable 12 gauge steel platform, and 12 gauge caster mounts for long lasting use. Bolt on casters for easy replacement or upgrade. Casters are 2 rigid, 2 swivel superior cart tracking. Overall height is 59". 4" channel uprights, 1-1/2" square tube arms. 3 load levels. Platform height is 11". Usable arm spacing (horizontal) - each side: Top - 6-1/2", Middle - 9-1/2", Bottom - 14-1/2". Standard color: Gray.....1940, 1944


BAR CRADLE TRUCKS 99UP
BAR CRADLE TRUCKS 99UP

Model 99UP - Transports pipes and bars. Capacity - 4,000 lb., evenly distributed. Product Features: All welded construction, except casters. Durable 12 gauge steel platform, and 12 gauge caster mounts for long lasting use. Bolt on casters for easy replacement or upgrade. Heavy-Duty 8" casters are 2 rigid, 2 swivel superior cart tracking. Overall height is 59". 4" channel with 3-uprights columns, 1-1/2" square tube arms. 3 load levels. Platform height is 11". Usable arm spacing (horizontal) - each side: Top - 6-1/2", Middle - 9-1/2", Bottom - 14-1/2". Standard color: Gray....1940, 1945




Bar and pipe trucks are perfect for transporting long lengths of steel pipe, steel rail or pvc pipe.
